M-5000 . . . 40 Watts!
Up to 200 Channels!
Very Bright LCD
User Adjustable
Very Small - but RUGGED!
UHF and VHF in stock!
Great for SCHOOLS!
. . . and for RESPONDERS
Longest Talk Distance
Fleet Capable
Rugged Hand Microphone!
Special Pricing!
- M-5000
- Specifications

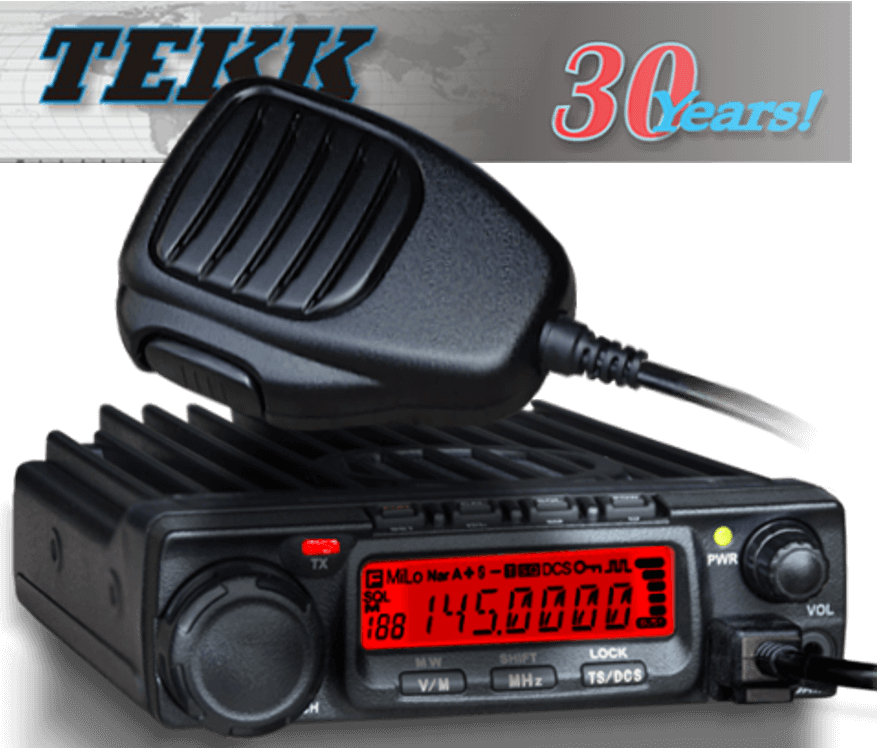

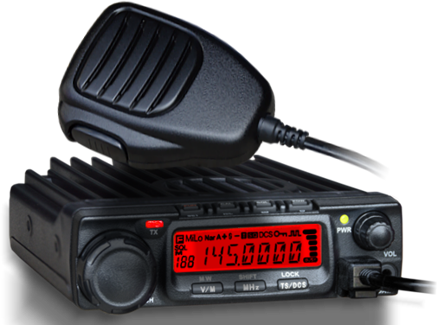

The Powerful M-5000 Mobile
Featuring High Power, Small Size, Bright Display.
The M-5000 UHF and VHF Mobiles, with bright LCD, are very small but highly rugged units. At 40 watts, this unit is perfect for school bus service, volunteer fire brigades and other commercial and public safety users.
High power, small size and extended warranty! This unit fills the needs of over 95% of our mobile radio users.
| General | UHF | VHF |
|---|---|---|
| Approvals | FCC and CE (Europe) and RoHS | |
| Channels | 200 Channels, 12.5 kHz Narrowband | |
| Dimensions | 144mm x 47mm x 190mm deep | |
| Antenna Impedance | 50 Ohms | |
| Voltage | 13.8 Volts DC Nominal | |
| Freq. Range | 400 ~ 470 mHz | 136 ~ 174 mHz |
| Transmitter | UHF | VHF |
| Power Output | 40/25/10 Watts | 40/25/10 Watts |
| Current | 2 ~ 8 AMPS (low to high power settings) | |
| Distortion | 5% Modulation Distortion @ 1000 Hz | |
| Hum & Noise | 36 dB | |
| Receiver | UHF | VHF |
| Sensitivity | 12dB SINAD: 0.35 uV | |
| Selectivity | Better than 60dB @ 12.5 kHz | |
| Spurious | 70dB Spurious Response | |
| Audio Power | 2 Watt / 5% Distortion | |
