X-700 5 Watt Series

   Rugged and Basic
   16 Channels
   User Friendly
   Mil Spec and IP-54
   Long talk range!

Slide background
X-700 Die-Casting

   Rugged Die-Cast
         Aluminum Chassis

   Silicone Contacts Gasket
   One Piece Cabinet
   Mil Spec and IP-54

Slide background
X-700 Small Size!

   Just larger than
            . . . a Credit Card!

   Fits any hand
   Light for all day convenience
   Mil Spec and IP-54

And Many Options!

Slide background
X-700 Options!

   Exceptional Selection
            . . . Professional Quality!

   Ear Worn Headsets
   Security Headsets
   All Day Comfort

Call Tekk Now!

Sunday, December 08, 2024
  • X-700 5 Watt Series
  • Specs
  • Accessories

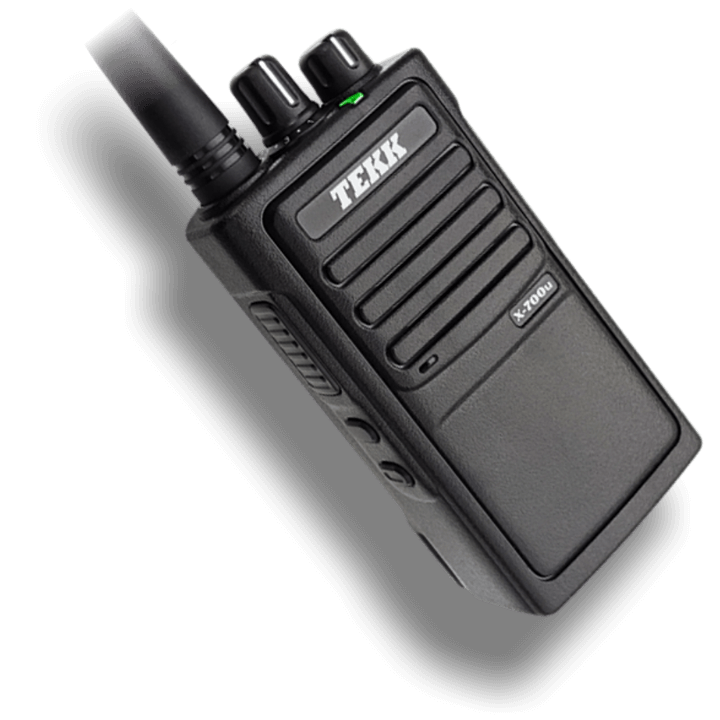

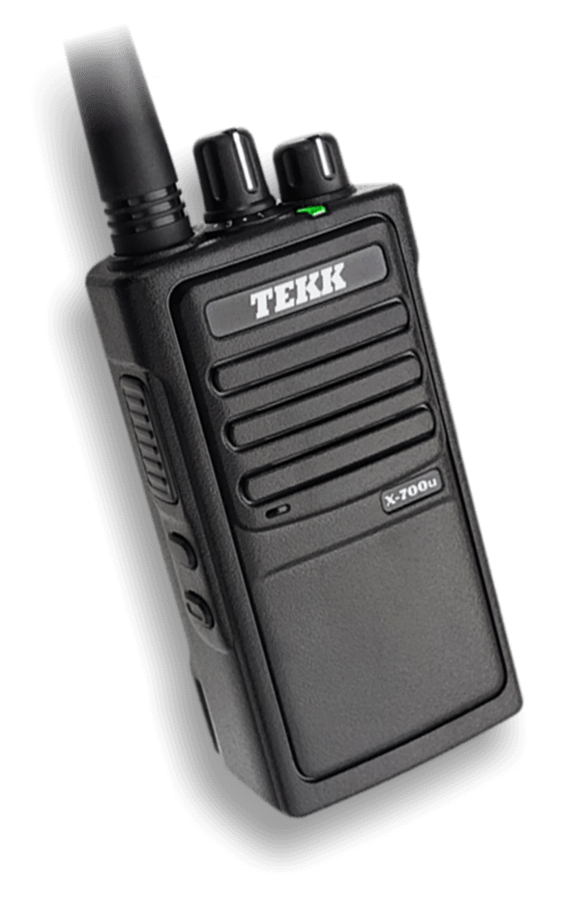

X-700 5 Watt Series

X-700u: 5 Watt Price Leader!

5 Watts High Power / Low Cost / Extra Features!

The X-700 UHF High Power model, built on a rugged die-cast aluminum chassis, is also the industry price leading model! Fully capable for many public safety applications, it is also a logical choice for school security, retirement homes, hotels and many more.

X-700 Series X-700u and X-700v
General UHF VHF
Approvals FCC and CE (Europe)
Channels 16 Narrowband Channels
Dimensions 4 x 2.4 x 1.6 Inches
Weight 9.5 Ounces
Voltage 7.4 Volts DC Nominal
Freq. Range 450 ~ 475 mHz 136 ~ 174 mHz
Transmitter UHF VHF
Power Output 5 Watts (1 Watt selectable) 5 Watts (1 Watt selectable)
Distortion 4% Modulation Distortion @ 1000 Hz
Hum & Noise Better than 40 dB
Battery Drain 1.5 Amps Nominal
Receiver UHF VHF
Sensitivity 12dB SINAD: 0.24 uV
Selectivity Better than 65dB @ 12.5 kHz
Spurious 70dB Spurious Response
Audio Power 1 Watt / 4% Distortion @ 16 Ohms
Battery Drain 45 mA Nominal in Standby Mode
X-700 Series X-700u and X-700v

Accessories Tab to be published soon.
