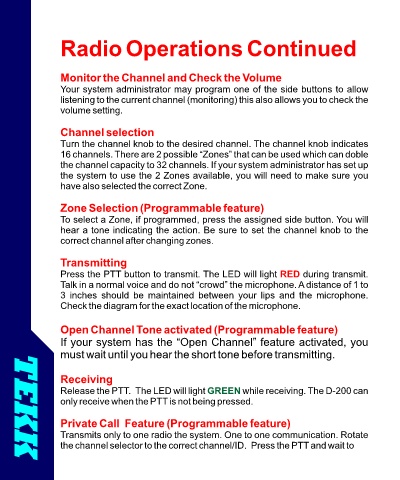

Page 10 - D-200+ User Guide

Radio Operations Continued

Monitor the Channel and Check the Volume
Your system administrator may program one of the side buttons to allow
listening to the current channel (monitoring) this also allows you to check the
volume setting.
Channel selection
Turn the channel knob to the desired channel. The channel knob indicates
16 channels. There are 2 possible “Zones” that can be used which can doble
the channel capacity to 32 channels. If your system administrator has set up
the system to use the 2 Zones available, you will need to make sure you
have also selected the correct Zone.

Zone Selection (Programmable feature)
To select a Zone, if programmed, press the assigned side button. You will
hear a tone indicating the action. Be sure to set the channel knob to the
correct channel after changing zones.
Transmitting
Press the PTT button to transmit. The LED will light RED during transmit.
Talk in a normal voice and do not “crowd” the microphone. A distance of 1 to
3 inches should be maintained between your lips and the microphone.
Check the diagram for the exact location of the microphone.

Open Channel Tone activated (Programmable feature)
If your system has the “Open Channel” feature activated, you
must wait until you hear the short tone before transmitting.

Receiving
Release the PTT. The LED will light GREEN while receiving. The D-200 can
only receive when the PTT is not being pressed.
Private Call Feature (Programmable feature)
Transmits only to one radio the system. One to one communication. Rotate
the channel selector to the correct channel/ID. Press the PTT and wait to
