Page 6 - D-200+ User Guide
P. 6

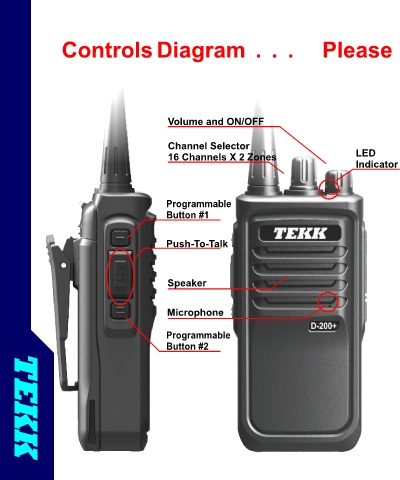

Controls Diagram  .  .  .     Please






                               Volume and ON/OFF

                               Channel Selector
                               16 Channels X 2 Zones             LED
                                                                 Indicator


                               Programmable
                               Button #1

                               Push-To-Talk


                               Speaker


                               Microphone
                               Programmable
                               Button #2
